Fiber-less infrared thermometers FLHX series

Fiber-less infrared thermometers FLHX series image

Measuring range 100 °C to 2000°C

Type	Measuring range	Wave length	Measuring distance	Target-size	Response time
FLHX-T	90～2000℃	1.95～2.6μm	25～1000mm	φ0.15～φ18mm	0.001s～
FLHX-P	220～2000℃	0.8～1.6μm	25～1000mm	φ0.15～φ18mm	0.001s～
FLHX-A	500～2000℃	0.8～1.0μm	25～1000mm	φ0.15～φ18mm	0.001s～

RoHS compliant CE marking

You can customize and select from more than 110 patterns.

The FLHX series can meet customer applications such as temperature ranges, measurement distances or spot sizes.
Measurrable

Using the quartz permeable wavelength, it allows measurement through glass.
The world's fastest response time

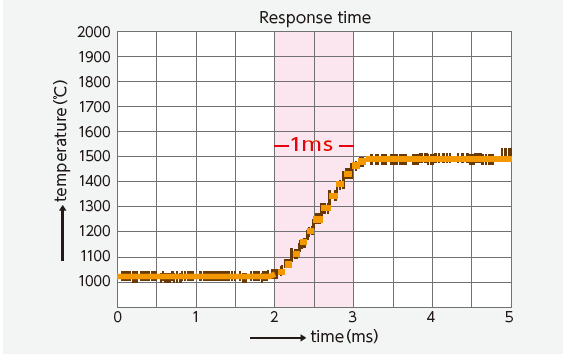

The world’s fastest response time of 1ms(0.001sec) allows detection of rapid temperature changes. The sensor head never misses sudden temperature changes.
Easy adjustment

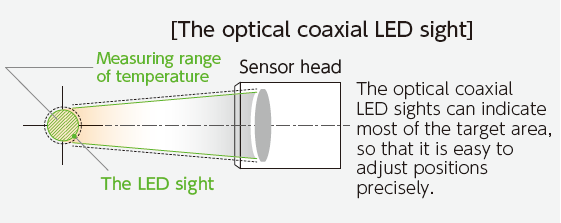

The FTK series is easy to position. This series of products uses the optical coaxial LED sights. It can measure the target precisely.
Usable with small targets

Spot size;φ0.15 mm ～
Heat resistance up to 150℃

These products to not contain a fiber cable, which makes them cost-effective. Therefore, they are appropriate for installing in assembly lines as the entry-level radiation thermometers by entry-level customers.

Type	FLHX- [1] TNE0090 [2] TNE0160 [3] TNE0220
Measuring range	[1] 90～1500℃ [2] 160～2000℃ [3]220～2000℃
Wave length	1.95～2.6μm
Detection element	InGaAs
Measuring distance	25～1000mm
Target-size	φ0.15～φ18mm
Sight	Green LED sight
Accuracy	Less than 800℃ ：±4℃ 800～1200℃ ：Measured value±0.5％ 1200～2000℃ ：Measured value±1.0％
Repeatability	Measured value±0.2％±2℃
Measuring resolution	Lowest temperature＋Less than 50℃ ：3℃ or Less Lowest temperature＋Less than 100℃：1℃ or Less Lowest temperature＋More than 100℃：0.5℃ or Less
Response time	0.001～5ｓ（ 0～95% analog output）
Warm-up time	1 min
Output Analog output(Non-isolation) Output type(Changeable)	DC4 to 20mA,DC0 to 20mA,mV/°C,DC0 to 1V (Option : 0 to 5V / 0 to 10V)
Output RS232C output(RS232C confirmity,non-isolation)	Output swing range : ±4V, Communicating speed : 4800,9600,19200,38400,57600,115200 bps
Alarm output (Non-isolation)	Open drain : DC27V, 0.2A
Peak Hold	Reset method (Selection)　[1] Time : 0.01 to 10 s changeable　 [2]Discharge : Time 0.01 to 10 s, level 0.2 to 1.0
Emissivity correction	Guaranteed range ; 0.3 to 1.0 with reflection correction Setting range ; 0.050 to 1.000(Setting resolution 0.001) Internal VR ; Built-in
Sensor correction function	Span：0.500～2.000 Zero：－50～＋50℃(°F)
Supply voltage	DC4.7 to 27V, 0.1A Max Analog output 0 to 5V ; 8 to 27 V/ 0 to 10 V ; 13 to 27V
Cable length(standard)	2m

Type	FLHX- [1] PNE0220 [2] PNE0300 [3] PNE0400
Measuring range	[1] 220～1650℃ [2] 300～2000℃ [3] 400～2000℃
Wave length	0.8～1.6μm
Detection element	InGaAs
Measuring distance	25～1000mm
Target-size	φ0.15～φ18mm
Sight	Green LED sight
Accuracy	Less than 800℃ ：±4℃ 800～1200℃ ：Measured value±0.5％ 1200～2000℃ ：Measured value±1.0％
Repeatability	Measured value±0.2％±2℃
Measuring resolution	Lowest temperature＋Less than 50℃ ：3℃ or Less Lowest temperature＋Less than 100℃：1℃ or Less Lowest temperature＋More than 100℃：0.5℃ or Less
Response time	0.001～5ｓ（ 0～95% analog output）
Warm-up time	1 min
Output Analog output(Non-isolation) Output type(Changeable)	DC4 to 20mA,DC0 to 20mA,mV/°C,DC0 to 1V (Option : 0 to 5V / 0 to 10V)
Output RS232C output(RS232C confirmity,non-isolation)	Output swing range : ±4V, Communicating speed : 4800,9600,19200,38400,57600,115200 bps
Alarm output (Non-isolation)	Open drain : DC27V, 0.2A
Peak Hold	Reset method (Selection)　[1] Time : 0.01 to 10 s changeable　 [2]Discharge : Time 0.01 to 10 s, level 0.2 to 1.0
Emissivity correction	Guaranteed range ; 0.3 to 1.0 with reflection correction Setting range ; 0.050 to 1.000(Setting resolution 0.001) Internal VR ; Built-in
Sensor correction function	Span：0.500～2.000 Zero：－50～＋50℃(°F)
Supply voltage	DC4.7 to 27V, 0.1A Max Analog output 0 to 5V ; 8 to 27 V/ 0 to 10 V ; 13 to 27V
Cable length(standard)	2m

Type	FLHX- [1] ANE0500 [2] ANE0600 [3] ANE0700
Measuring range	[1] 500～2000℃ [2] 600～2000℃ [3] 700～2000℃
Wave length	0.8～1.0μm
Detection element	Si
Measuring distance	25～1000mm
Target-size	φ0.15～φ18mm
Sight	Green LED sight
Accuracy	Less than 800℃ ：±4℃ 800～1200℃ ：Measured value±0.5％ 1200～2000℃ ：Measured value±1.0％
Repeatability	Measured value±0.2％±2℃
Measuring resolution	Lowest temperature＋Less than 50℃ ：3℃ or Less Lowest temperature＋Less than 100℃：1℃ or Less Lowest temperature＋More than 100℃：0.5℃ or Less
Response time	0.001～5ｓ（ 0～95% analog output）
Warm-up time	1 min
Output Analog output(Non-isolation) Output type(Changeable)	DC4 to 20mA,DC0 to 20mA,mV/°C,DC0 to 1V (Option : 0 to 5V / 0 to 10V)
Output RS232C output(RS232C confirmity,non-isolation)	Output swing range : ±4V, Communicating speed : 4800,9600,19200,38400,57600,115200 bps
Alarm output (Non-isolation)	Open drain : DC27V, 0.2A
Peak Hold	Reset method (Selection)　[1] Time : 0.01 to 10 s changeable　 [2]Discharge : Time 0.01 to 10 s, level 0.2 to 1.0
Emissivity correction	Guaranteed range ; 0.3 to 1.0 with reflection correction Setting range ; 0.050 to 1.000(Setting resolution 0.001) Internal VR ; Built-in
Sensor correction function	Span：0.500～2.000 Zero：－50～＋50℃(°F)
Supply voltage	DC4.7 to 27V, 0.1A Max Analog output 0 to 5V ; 8 to 27 V/ 0 to 10 V ; 13 to 27V
Cable length(standard)	2m
