Emissivity meter TSS-5X-2

Quickly measures emissivity of a target at room temperature.

The TSS-5X-2 can easily measure emissivity at room temperature and clearly display emissivity data.

The TSS-5X-2 is used in assembly lines,space exploration,semiconductors and nuclear power.



  • Feature
  • Specification/Measuring distance and target-size

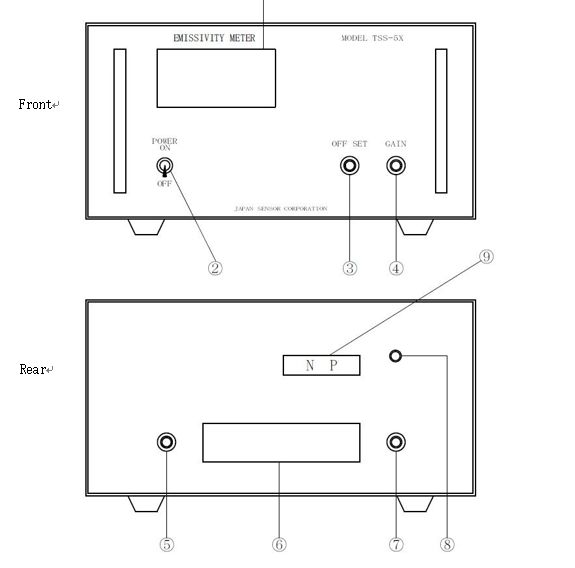

  • Dimensions of each parts/Wiring
  • Option

Feature

  • Knowing  emissivity is helpful for saving energy.For example,it is possible to increase the emissivity efficiency of electric heaters and design products to focus on heat dissipation and insulation.

    The TSS-5X-2 can easily measure emissivity without heating targets at room temperature.

    When you measure their emissivity,you can use two standard measuring devices with fixed emissivity,one with a 0.97 black surface rate and the other with a 0.06 mirror surface rate.

    Reflected energy is detected by reading infrared rays that reflected off of the target and reach the sensor head through a small hole in the black body.

Print

型式 Model : TSS-5X-2
測定方式 Measurement method

The reflection energy detection method by the infrared radiation from the constant temperature emission source.
測定波長 Spectral response : 2 ~ 22µm
測定範囲 Measurement range : Emissivity 0.01 – 1.00
精度定格 Accuracy : ±1% of full scale
測定面積 Measurement size : φ15mm
測定距離 Measurement distance : 12mm
測定値表示 Display : Digital meter 2 decimal places
出力 Recorder output : 100mVFs or 1VFs
使用温度・湿度範囲 Ambient / temperature : 10~45℃ / 35~85% (non-condensation)
電源・電力 Supply voltage : AC100~240V 30W
寸法・質量 Dimension & Weight
Sensor head : φ51x137Lmm, 0.6kg (with 3000Lmm robot cable)
Main body : H156 x W306 x D230mm, 5.0kg

Cable length : 3m
付属品 Accessories
Aluminium box : H84 x W238 x D185mm, 1.1kg
2 standard measuring devices with a box.
(Emissivity : 0.06 & 0.97)
Response time
0.1sec. (0~63%) by recorder output
